The name allocated to these pin and connector varieties is generated from the company that developed the very first varieties in Molex connectors that is the Molex Products Company. The company aided to regulate the type of links in the decade lasting between the nineteen fifties and sixties. Despite the fact that the Molex connectors were at the very beginning made to utilize in domestic devices, they are now a benchmark in computer and vehicle electronics.
The modern Molex connectors pin and socket inter-association, has become abundantly popular owing to the ease and consistency of the design. One half of the two piece connectors houses the metallic pins – this is what is known as the pin connector, while the other half acts as the socket. These pins and sockets are secured into position with the aid of casings made from nylon and arranged in a kind of rectangular mold all dependant upon the function the duo is supposed to carry out. The casings can be set to accommodate circuits ranging in number from between two to fifteen.
Perhaps the most regular application of the Molex connectors in modern times is within the architecture of the personal computer. The power supply function of the computer is equipped with a massive amount of varying types of Molex connectors. The most prevalent Molex connector within the personal computer’s power supply is the ATX connector. It may also be referred to as the Mini-Fit junior. The ATX connector can accommodate anywhere a maximum of twenty four and a minimum of twenty varying pins, all hinged on the year of manufacture of the electricity supply together with that of the motherboard component that it is to be linked to.

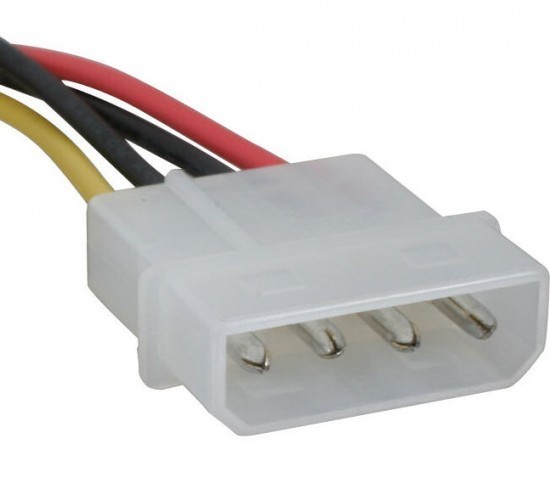

Within the desktop personal computer, there are more Molex connectors that accommodate a four pin connector structure. These are referred to as hard drive connectors. Combined together the total yield of volt output that is generated from these disk drive connectors is seventeen volts, broken down in the following manner where one of them supplies twelve volts, another supplies five volts and a pair are used as earthing to ground. The connector with the metallic pins is known as a male connector while its counter part is known as the female connector to distinguish them from each other.
